Capsa Scope Cabinets

Specialized storage designed to protect delicate endoscopes and ensure compliance.

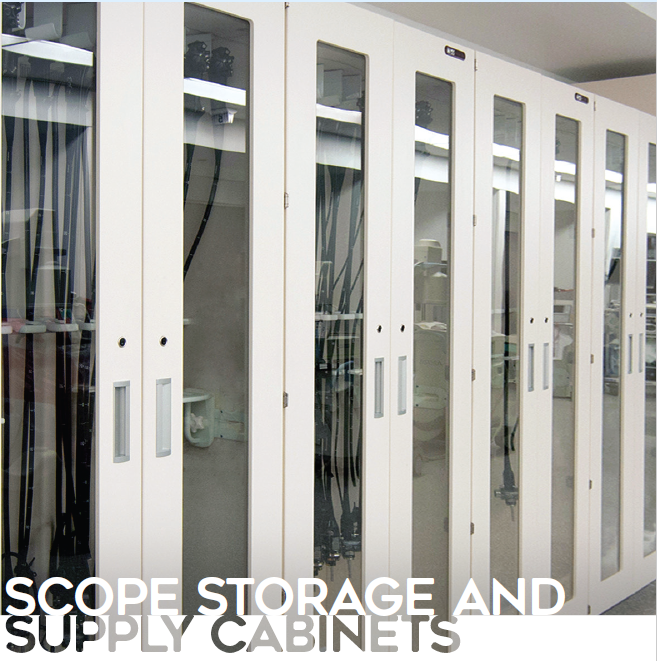

White storage cabinets with glass doors in a clean room.

TruAirâ„¢ Scope Drying Cabinet

The TruAir™ Scope Drying Cabinet is designed to keep endoscopes safe and dry while adhering to ST91 standards. The cabinet features a TruHEPA-filtered airflow system that creates a positive pressure barrier, to reduce the risk of contamination. The TruAir™ system simultaneously provides HEPA-filtered air to up to 18 flexible endoscope lumens, filtering particles as small as 0.3µm with a filtration rate of 99.97%.

  • Capacity for 4-18 flexible endoscopes
  • Self-contained TruH EPA-filtered air system
  • Fastest flow rate in the industry of 65 L/min (6 L/min per scope)
  • Optional LED lighting
  • Rotating scope hooks (front row) eliminate risk of cross-contamination
  • Powder coated metal or stainless steel finish options
  • Keyed and keyless locking systems for added security
  • HEPA option available at 99.97% filtration for up to 0.03 microns
  • HA option available at 99.98% filtration for up to 0.01 microns
  • 7-year warranty
Logo of TruAir Europe Drying Solutions with blue and black text.
Open electrical cabinet with visible cables and components.

Half-Width:
White Powder Coat

4 or & Capacity
W 21.625"
D 18.75"
Η 93.75"

Row of black garden sprinklers lined up vertically.

Half-Width:
White Powder Coat

9 or 18 Capacity
W 40.875"
D 18.75"
Η 93.75"

Close-up of metal elevator doors with vertical ridges and a rectangular window.

Half-Width:
Stainless Steel

4 or 8 Capacity
W 21.625"
D 18.75"
Η 93.75"

Close-up of stainless steel elevator doors with symmetrical handles.

Half-Width:
Stainless Steel

9 or 18 Capacity
W 40.875"
D 18.75"
Η 93.75"

Modern white and red room with minimalist design and cables hanging.

Half-Width:
Stainless Steel/Red Accent

9 or 18 Capacity
W 40.875"
D 18.75"
Η 93.75"

Wall-mounted rack holding four white mugs with a coffee machine spout.

Specifications

  • Air Flow Rate Filter Efficiency: 6 L/min per Scope (Minimum)
  • Air Pressure: 4 psi (Maximum)
  • Holse: 45 db
  • Unear Pump Filter Efficiency: 99.97% up to 0.03µm
  • Cabinet Filter Efficiency: 99.97% up to 0.03µm
  • Electrical Supply: 120 V Wall Plug-3A (8" Cord Exiting Top Right of Cabinet)
  • Power Consumption: Up to 128W
  • Rated Amperage: 4.1A

TruAirâ„¢ Scope Storage Cabinet

The TruAir™™ Scope Storage Cabinet is a safe and reliable solution for securely storing endoscopes in a sterile environment. The cabinet is equipped with a TruHEPA filter circulation fan, which creates continuous positive air pressure inside the cabinet. It offers the capacity to store up to 18 endoscopes, and includes a hinged glass door with options for a key or keyless lock for added security.

  • Capacity for 4-18 flexible endoscopes
  • Self-contained TruH EPA-filtered air system
  • Rotating scope hooks (front row) for greater access
  • Powder coated metal or stainless steel finish options
  • Keyed and keyless locking systems for added security
  • Optional LED lighting
  • Option for pass-through endoscope storage cabinet
  • 7-year warranty
Tall plant stems with white flowers against a white wall.

Half-Width:
White Powder Coat

4 or 8 Capacity
W 21.625"
D 18.75"
Η 93.75"

White modern bathroom shower with sliding glass door and chrome handles.

Half-Width:
White Powder Coat

9 or 18 Capacity
W 40.875"
D 18.75"
Η 93.75"

Close-up of metal elevator doors with vertical ridges and a rectangular window.

Half-Width:
Stainless Steel

4 or 8 Capacity
W 21.625"
D 18.75"
Η 93.75"

Close-up of stainless steel elevator doors with symmetrical handles.

Half-Width:
Stainless Steel

9 or 18 Capacity
W 40.875"
D 18.75"
Η 93.75"

Person cleaning a camera lens with a brush.

Specifications

  • Cabinet Filter Efficiency: Removes 99.97% of Particles (up to 0.3µm)
  • Air Supply: HEPA Filter Fan (Cabinet)
  • Storage Capacity: 4-18 flexible endoscopes
  • Electrical Supply: 120 V Wall Plug-3A (8" Cord Exiting Top Right of Cabinet)

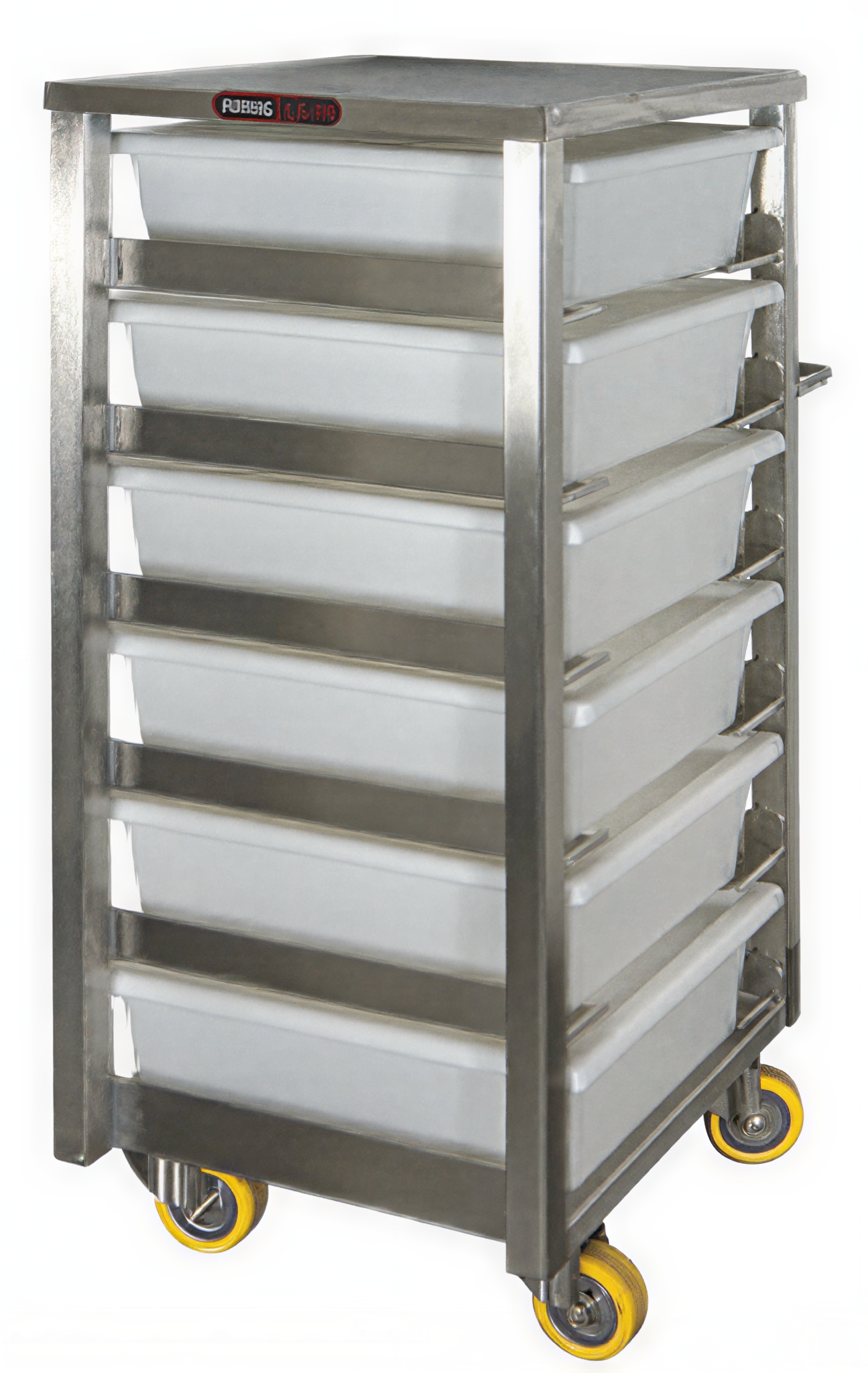

A tall metal storage rack with multiple trays on wheels.

TruAirâ„¢ Scope Transport Cart

The TruAir™™™ Scope Transport Cart prevents scope damage and cross-contamination during transport. Its open-frame design offers better visibility and reduces cleaning time. The gapless construction discourages debris accumulation, helping to maintain cleanliness. The transport cart is available in two heights with either 4 or 6 extra deep trays with lids that prevent damage caused by tightly coiled scopes, which follows SGNA recommendations.

  • Capacity for four or six flexible endoscopes
  • Autoclavable trays with lids offer deep storage
  • Clear, red or green color-coded transport liner bags available
  • Sterile or non-sterile transport liner bags available
  • Stainless steel finish
  • Multi-point tray grips to keep scopes in place

Specifications

  • External Dimensions: 4 Scopes: 22^ prime prime W * 25' * D * 34' * H
  • 6 Scopes: 22' * W * 25' * D *38^ prime prime H
  • Capacity: 4 or 6 trays with Lids
  • Construction:
    • Stainless Steel
    • Tray stops
    • 4" diameter casters
